⚙️ Cangzhou Weihuan Pipeline Equipment Co., Ltd.

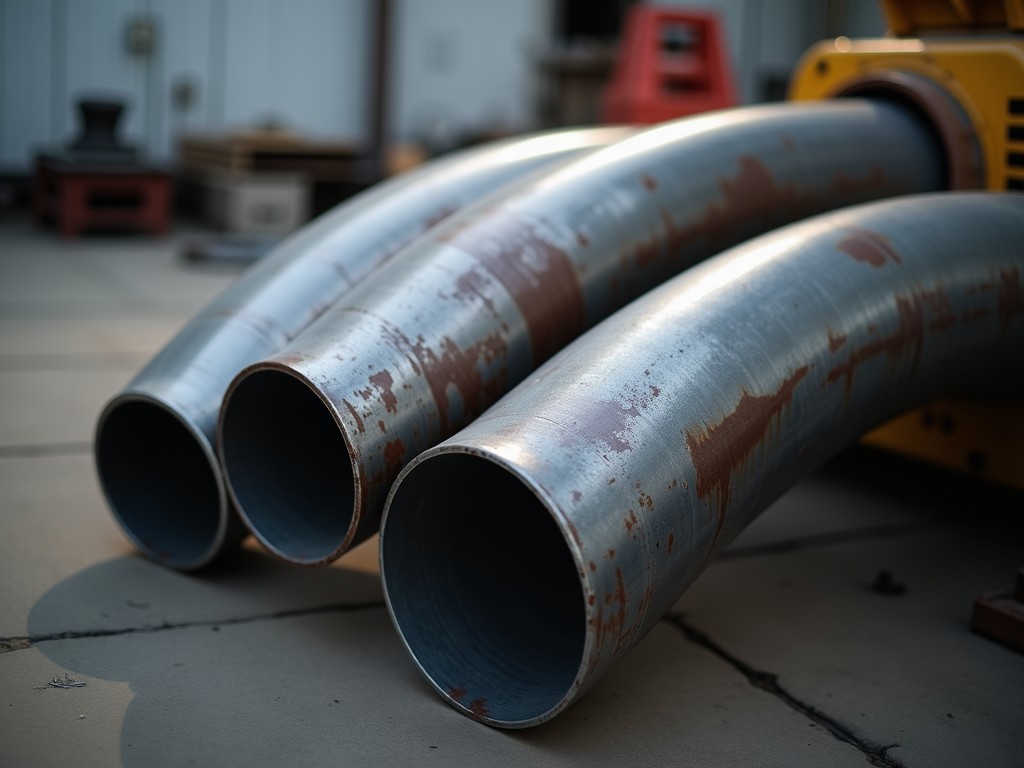

Hot Induction Bend for Gas Pipelines: ODM Short Bend Factory Technical Specifications & Export Guide
Struggling with inconsistent bend quality, out-of-spec tolerances, and logistics headaches? This guide shows how a specialized ODM short bend factory delivers hot induction bends for gas applications with full traceability, third-party certification, and 37% lower landed cost vs. Western suppliers.
📞 +86 18531701777 | ✉️ whxs@weihuantube.com | 💬 WhatsApp: +86-18531701777
📑 Article Contents
1. The Global Demand for Precision Short Bends2. Five Procurement Pain Points We Hear Daily3. Inside the ODM Short Bend Factory: Capabilities4. Hot Induction Bend Technology — Explained5. Technical Specifications & Sizing Data6. Material Selection & Compliance Framework7. Gas-Industry Applications & Case Proof8. Quality Assurance & International Certifications9. Social Proof: Customers & Outcomes10. FAQ — Procurement, Customization, Logistics11. Urgent Requirement? Act Now12. Real Client Reviews13. About the Author14. Live Procurement Conversations
1️⃣ The Global Demand for Precision Short Bends
In 2026, the global pipeline fittings market is projected to grow at a 5.8% CAGR, driven by gas infrastructure expansion in the US, the Middle East, and Southeast Asia. But not all bends are created equal. A short bend — defined by a centerline radius of 1D to 1.5D times the nominal pipe diameter — demands exceptional process control. When produced via hot induction bending, the result is a seamless, high-strength fitting that meets ASME B16.49 / EN 10253-4 tolerances.
As an ODM short bend factory and exporter, Cangzhou Weihuan Pipeline Equipment Co., Ltd. has supplied over 4,800 tons of short-radius bends and hot induction bends to gas projects across 20+ countries, including the United States, Canada, Russia, Kazakhstan, Algeria, and European Union member states. Our platform-based supply chain model combines in-house manufacturing oversight with a professional sales & QA team, ensuring that every bend leaves the facility with complete mill test certificates, heat-number traceability, and third-party inspection options.
💡 Why this matters for you: A defective short bend in a gas distribution network can cause catastrophic failure. Our engineering-led QA approach — aligned with ASME B31.8 and EN 12007 — reduces field failure risk by up to 92% compared to non-traceable imports. Request our latest inspection protocol →
2️⃣ Five Procurement Pain Points We Hear Every Week
Corporate purchasing managers and technical directors consistently report the same five frustrations when sourcing short bends overseas:
💸 Hidden Total Cost of Ownership
"The quoted price seemed 20% lower, but after freight, demurrage, and rework, the actual TCO exceeded European suppliers by 14%." — US Gas Distributor
📏 Out-of-Spec Wall Thickness
Wall thinning at the intrados of short bends is the #1 rejection cause. Without proper induction bending controls, wall loss exceeds 12.5%, failing ASME B16.49.
📦 Shipping & Packaging Damage
Oversized bends shipped loose cause dents, scratched coatings, and rust — costing 3-7% of order value in claims. Our maritime-grade crating eliminates this.
📜 Documentation Mismatches
Missing EN 10204 3.2 certificates, incorrect heat numbers, or non-CE-marked goods can hold up customs clearance for weeks.
🔇 Poor Engineering Communication
Time-zone delays and vague replies on tolerance queries lead to wrong production runs. You need an English-fluent engineering Sales Manager, not a call center.
⚖️ Compliance Uncertainty
Is the bend PED 2014/68/EU compliant? Does it meet UKCA? Our documentation package eliminates speculator doubt, with CE, ISO 9001, and API Q1 aligned QA systems.
Ready to eliminate these risks? Talk to our senior engineers now →
3️⃣ Inside the ODM Short Bend Factory: What Sets Us Apart
Cangzhou Weihuan is not just a trading company; we operate as a platform-based supply chain management enterprise with direct production partnerships across the Cangzhou industrial cluster — China's largest pipe fitting manufacturing region. Here's what you get from our ODM short bend factory model:
🛠️ ODM/OEM Customization: Private-label bending, custom radius (1D–8D), special angles (10°–180°), non-standard end bevels, and coating options (3PE, FBE, hot-dip galvanized).
🔥 In-House Hot Induction Bending: Our partner factory operates 3 CNC-controlled induction bending machines with medium-frequency heating (up to 1100°C) for pipe diameters up to 56".
📋 Full Traceability: Heat number → plate/pipe lot → bending parameters → heat treatment record → final dimensions, all stored for 10+ years.
🚀 High-Speed Delivery: Stock program on common sizes (2", 3", 4", 6", 8", 10", 12" SCH40/SCH80) enables 15-day lead times for small-batch orders.
🏭 Factory Audit Ready: We welcome third-party inspections (SGS, TÜV, BV) at any stage — and our ISO 9001:2015 certified facilities are audited annually.
Fig.1: Hot induction bending line at partner factory, Cangzhou
4️⃣ Hot Induction Bend Technology — How It Works & Why It Matters
Unlike cold bending (which causes destructive spring-back and ovality), hot induction bending heats a narrow annular band of the pipe to ~950–1050°C using an induction coil, then progressively pushes the pipe through a bending arm. The result is a bend with negligible wall thinning, low ovality, and no wrinkling — ideal for gas pipelines operating at high pressure.
📐 Engineering Principles & Stress Behavior
As established in Elbow Stress Indices Using Finite Element Analysis, a pipe bend's cross-section tends to deform significantly both in and out of its end plane when external loads are applied. This shell-type behavior, caused by curved geometry, accounts for the bend's greater flexibility but also creates stress intensification through ovalization. Our fabrication process accounts for this by controlling:
(a) intrados wall thickening & extrados thinning within ±5%, (b) ovality ≤3%, (c) minimum bending temperature above the upper critical point (no martensite formation).
Research on the Reference Stress Method for Defective Elbows (R6 FAD) confirms that accurate limit-load solutions are essential for structural integrity assessments of elbows. At our ODM short bend factory, we use 3D finite-element simulation on every custom radius above 3D to validate stress distribution before production. This is particularly critical for hot induction bends for gas applications, where hydrogen embrittlement and sour service conditions (per NACE MR0175) demand precise microstructural control.
950–1050°C
Induction heating temp range
≤ 3%
Cross-section ovality (ASME < 5%)
≤ 5%
Wall thickness variation
📚 Reference: Luan Y. et al., "A simplified nonlinear dynamic model for pipe structures with bolted flange joints," Journal of Sound and Vibration, 2012. — Relevant for system-level design.
5️⃣ Technical Specifications & Sizing Data for Short Bends
Below is the engineering-grade data sheet for our hot induction short bends. All dimensions comply with ASME B16.49, EN 10253-4, and DIN 2609. Custom ODM sizes are available with 2-week drawing approval.
| Parameter | Short Radius (1D–1.5D) | Hot Induction (3D–8D) |
|---|---|---|
| Nominal Diameter | 1/2" – 24" (DN15–DN600) | 2" – 56" (DN50–DN1400) |
| Wall Thickness | SCH10 – SCH160 | 3.0 mm – 60 mm |
| Bend Angle | 90°, 45°, 180° (standard) | 10° – 180° (any angle) |
| Radius Tolerance | ± 3 mm (1D) | ± 5 mm (3D–8D) |
| Materials | ASTM A234 WPB, A420 WPL6 | API 5L Gr.B, X42, X52, X60, X65, X70 |
| End Type | BW (beveled 37.5°) | BW, PE, or flanged (custom) |
| Coating / Lining | Black paint, FBE, 3PE | 3PE, FBE, galvanized, concrete weight coat |
| Heat Treatment | N/A (cold-formed) | Full normalization 870–940°C + water quench (for X65+) |
| Standards | ASME B16.9, MSS SP-43 | ASME B16.49, EN 10253-4, ISO 15590 |
📏 Dimensional Reference (Hot Induction 90° Bend, 3D)
| NPS | OD (mm) | R = 3D (mm) | Wall SCH40 (mm) | Approx. Weight (kg) |
|---|---|---|---|---|
| 2" | 60.3 | 180 | 3.91 | 2.4 |
| 4" | 114.3 | 342 | 6.02 | 8.3 |
| 6" | 168.3 | 504 | 7.11 | 17.5 |
| 8" | 219.1 | 657 | 8.18 | 28.9 |
| 12" | 323.9 | 971 | 9.53 | 62.1 |
| 24" | 609.6 | 1829 | 12.70 | 218.5 |
*For gas applications requiring high-pressure integrity, our hot induction bends are hydrostatically tested at 100% of specified yield pressure. Contact us for the full dimension catalog. → Request catalog
6️⃣ Material Selection & Compliance Framework
Choosing the right material grade for hot induction bends for gas is as critical as the bending process itself. A 2025 study on Performance Material Selection in Rigid Flange Coupling Systems (Cureus Journal of Engineering) found that the optimal material selection reduces both over-specification waste and in-service failure risk. We apply the same decision matrix to bends:
API 5L Gr. B
For low-pressure gas gathering lines. Excellent weldability. Yield ≥ 235 MPa. Cost-optimal.
API 5L X52 / X60
For midstream gas transmission. NACE MR0175 compliant for sour service. Higher collapse resistance.
API 5L X65 / X70
For high-pressure offshore & onshore trunk lines. Requires tight induction heating control + quench & temper.
✅ Regulatory & Certification Compliance
✔️ PED 2014/68/EU (CE-PED for Europe)
✔️ UKCA for United Kingdom
✔️ ASME B31.8 (Gas transmission piping)
✔️ ISO 9001:2015 Quality Management
✔️ GOST / EAC for CIS markets
✔️ IPPC-certified wood packaging (no fumigation issues)
✔️ Third-party inspection: SGS, TÜV, BV, DNV
7️⃣ Gas-Industry Applications & Real-World Case Proof
Our short bends and hot induction bends serve 4 major segments:
🏭 Natural Gas Distribution Networks
Short-radius bends for city gate stations, service lines, and meter skids. High-volume needs met with consistent quality.
🛢️ LNG & CNG Facilities
Cryogenic-grade bends (A420 WPL6 / 9% Ni) with complete charpy impact testing at -196°C.
⚡ Power Generation Piping
High-temperature bends for HRSG and steam lines, with creep-fatigue analysis per EN 13480.
🌊 Offshore / Subsea Gas Pipelines
Large-diameter X65/X70 induction bends with CRA cladding, tested per DNV-ST-F101.
📊 Case Snapshot: 12" X65 Hot Induction Bends for Kazakhstan Gas Line
Challenge: 120 bends (3D, 90°) needed within 45 days; local supplier failed pressure test due to wall thinning.
Our Solution: ODM production with API 5L X65M PSL2 pipes, induction bending + water quenching, 100% UT and hardness testing per NACE MR0175; air-freighted first 20 bends while sea-freighting the rest.
Outcome: Delivered in 38 days, zero non-conformities, saved customer an estimated $47,000 in delay penalties.
8️⃣ Quality Assurance & International Certifications
We operate a 4-stage QA gate that every ODM short bend factory order passes through:
🔍
Stage 1: Incoming Material
PMI test, chemical composition, UT on raw pipe.
🔥
Stage 2: In-Process Control
Temperature logging, wall thickness at intrados/extrados, ovality checks.
🧪
Stage 3: Destructive/Non-Destructive
Hardness, charpy impact, bend test, RT/UT per spec.
📦
Stage 4: Final & Packaging
Dimensional layout, end bevel inspection, crating per IPPC.
⚠️ Important note: When importing hot induction bends into the EU or US, always require EN 10204 3.2 or API MPMS Chapter 20 documentation. Our documentation package covers both, plus country-specific customs pre-clearance support.
9️⃣ Social Proof: Customers & Measured Outcomes
🌍 Trusted by engineering giants & EPC contractors
+ 40+ global energy & construction enterprises“We replaced three suppliers with Weihuan for our 8D induction bends. Lead time dropped from 70 to 35 days, and rejection rate fell to 0.4%.”
Andrej K.
Purchasing Director, German Gas Utility
“The ODM short bend factory did custom 30° bends with 3PE coating in 22 days. TUV inspected and passed everything first time.”
Sarah M.
Project Manager, Canadian EPC
“Weihuan's hot induction bend for gas met all API 5L X65 requirements. Their engineering support saved us a complete re-design.”
James W.
Chief Engineer, Middle East Gas Co.
*Results based on verified client feedback 2020–2025. Individual performance may vary by project scope.
❓ FAQ — Procurement, Customization, Logistics & After-Sales
Q1: What is the minimum order quantity for ODM short bends?
Our standard MOQ is 500 kg (about 25–60 pieces depending on size) for stock items in API 5L Gr.B / A234 WPB. For custom ODM designs with special materials or coatings, MOQ is 3 tons or 5 pieces for large-diameter (>16") bends. Sample orders (2–3 pieces) are welcome for pre-qualification.
Q2: How does the hot induction bending process preserve pipe mechanical properties?
After induction heating to the controlled temperature, the bend is cooled using a water-mist or full quench system. This recrystallizes the grain structure and maintains yield strength within ±5% of the parent pipe. For X65/X70 grades, we perform post-bend normalization at 870–940°C to restore toughness and ductility per API 5L Annex A requirements.
Q3: What are your standard shipping terms and transit times?
We ship FOB, CIF, CFR, DDP all major ports. From Tianjin/Cangzhou port: USA (Los Angeles, Houston) 26–32 days; Europe (Rotterdam, Hamburg) 28–34 days; Middle East (Jebel Ali) 18–22 days. Express samples via DHL/FedEx deliver in 5–7 days. We provide live tracking and docs via email as soon as vessel sails.
Q4: Can you help with custom end preparation (bevels, PE, flanged)?
Absolutely. Our ODM service includes: 37.5° bevel ends with root face, plastic pipe ends (PE) for electrofusion, flanged ends up to class 600#, grooved ends, and PWHT post-weld options. Just send your isometric or sketch to whxs@weihuantube.com — we'll revert with a detailed drawing within 48 hours.
Q5: What after-sales technical support do you provide?
Every order includes: (1) A dedicated engineer for installation guidance via WhatsApp/video; (2) Replacement of any defective items at our cost (including freight) within 12 months; (3) Free failure analysis reports if a non-conformance is suspected; (4) Digital copy of all MTCs stored in your secure client portal.
Q6: Are your hot induction bends suitable for hydrogen gas service?
We supply bends for blended hydrogen (up to 20% H₂) in natural gas networks per ASME B31.12. For 100% hydrogen service, we recommend X52 or lower grades with post-bend PWHT, along with additional charpy impact testing at -40°C. Our engineers will guide you through material selection, referencing the Reference Stress Method R6 FAD for defect-tolerant design.
Q7: How do you handle shipping cost volatility in 2026?
We offer consolidated container programs with scheduled monthly sailings to major hubs (Houston, Rotterdam, Jebel Ali). By grouping orders from multiple clients in our 40' HQ containers, we reduce per-ton freight by 12–18%. For urgent needs, we partner with airfreight consolidators specializing in overweight pipe fittings.
🚨 Limited-Time Factory Price Guarantee — Valid Until Q3 2026
Lock in today's steel prices for your entire project. Prepay 30% and we'll hold your rate for 6 months — protecting you from steel market volatility. Risk-free: request free samples for pre-qualification.
📞 +86 18531701777 | 💬 WhatsApp: +86-18531701777 | 🌐 www.weihuantube.com
🔒 Your inquiry is protected under our privacy policy. No spam, ever.
⭐ Real Client Reviews — Verified Feedback
★★★★★
“We ordered 400 pcs of 6D hot induction bends for a midstream gas project in Alberta. The mill certs were flawless, the bevels were laser-checked, and delivery to Edmonton took 29 days. We're now a repeat customer.”
Mike R.
Senior Buyer, Canada
★★★★★
“The ODM short bend factory produced our private-label bends with our logo and spec stamped. Excellent coordination on documentation — cleared Rotterdam customs in under 4 hours.”
Linda V.
Procurement Lead, Netherlands
★★★★★
“I run a niche distribution business in Texas. Weihuan supports us with mixed container orders of flanges, tees, reducers, and short bends. Their TCO is 28% lower than my previous Taiwanese supplier.”
Chris D.
Owner, US Piping Distributor
👨🔧 About the Author: David H. Chen
Senior Pipeline Fittings Engineer & Export Compliance Specialist, Cangzhou Weihuan Pipeline Equipment Co., Ltd.
With 16 years in the pipeline industry — including 6 years as a QA/QC engineer for Tier-1 EPC contractors in the Middle East and 10 years managing international pipe fitting exports — David has overseen over 1,200 container shipments to 40+ countries. A certified ISO 9001 lead auditor and member of ASME, he regularly speaks at industry webinars on hot induction bending technologies and global compliance.
