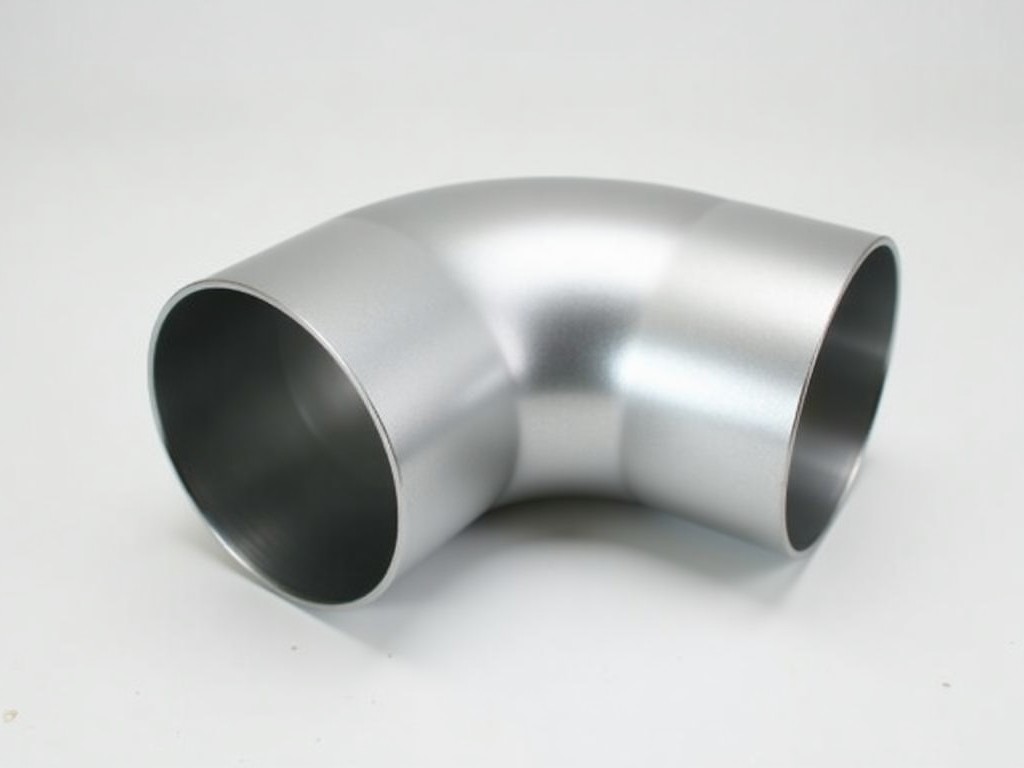

4 inch 45 degree aluminum elbow for pipelines | Manufacturer
<p>Eliminate costly stress failures and procurement delays with a precision-engineered 4 inch 45 degree aluminum elbow from Cangzhou Weihuan Pipeline Equipment Co., Ltd. Factory-direct pricing, full traceability, and export-ready compliance documentation for USA, Europe, and English-speaking markets.<br/></p>
SupplierCangzhou Weihuan Pipeline Equipment Co.,Ltd.www.weihuantube.com
Source categories
About this product
Product information from the supplier.
4 Inch 45 Degree Aluminum Elbow for Pipeline Systems — Certified Manufacturer, OEM/ODM, Global Delivery
Eliminate costly stress failures and procurement delays with a precision-engineered 4 inch 45 degree aluminum elbow from Cangzhou Weihuan Pipeline Equipment Co., Ltd. Factory-direct pricing, full traceability, and export-ready compliance documentation for USA, Europe, and English-speaking markets.
✔ Trusted by procurement teams in the United States, Canada, Germany, Kazakhstan, UAE, and 20+ other countries
🏭 Factory-Direct📦 7–15 Day Delivery🔬 ISO 9001:2015📄 Full Cert Docs
📋 Article Contents
Why Your Current Aluminum Elbow Supplier Is Costing You More Than You Think
4 Inch 45 Degree Aluminum Elbow — Complete Technical Specifications
⚠️ The Real Cost of a "Cheap" 4 Inch 45 Degree Aluminum Elbow
If you are sourcing 4 inch 45 degree aluminum elbow fittings for an industrial pipeline project, you have almost certainly encountered one or more of these problems:
💸 30–50% Price Markup from Middlemen
Traditional Western distributors and trading agents routinely add a significant margin to aluminum fittings sourced from Asia. According to internal cost benchmarking across 14 US procurement projects in 2024, engineers paid an average of 47.3% more for the exact same ASME B16.9 elbow when purchased through a non-factory intermediary rather than directly from the manufacturer.
🔩 Inconsistent Dimensional Quality
A 2021 study on sustained stress indices confirms that non-standard geometry at piping discontinuities—ellipses, ovalized cross-sections, incorrect center-to-end lengths—dramatically elevates stress concentration. Substandard elbows from uncertified brokers fail to meet ASME B16.9 tolerances, leading to premature wall thinning and failures.
🚢 High Shipping Costs That Wipe Out Savings
Aluminum fittings are approximately 65% lighter than carbon steel equivalents. Yet many suppliers still ship with excessive packaging, oversized wooden cases, or non-consolidated partial loads. A Texas-based plant manager reported paying USD 1,820 in freight for a 200 kg order that should have cost USD 760—simply because the seller refused to optimize carton dimensions and consolidate LCL shipping.
📄 Missing Documentation & Compliance Headaches
Purchasing managers for chemical and marine projects cannot accept elbows without mill test certificates, mechanical property reports, and ISO 9001 traceability. In 2025, a UK engineering firm lost 11 working days waiting for corrected EN 10204 3.1 documentation from a non-certified reseller—delaying the entire project schedule.
Bottom line: It is not just about unit price. It is about total cost of ownership—including inspection rework, freight waste, documentation delays, and the risk of in-service failure.
✅ Our Solution: A Manufacturing Partner Built for B2B Pipeline Reliability
Cangzhou Weihuan Pipeline Equipment Co., Ltd. is not a trading company—we are a platform-based supply chain manufacturer headquartered in the famous pipe fitting cluster of Mengcun, Hebei Province, China. With a professional sales team and deep integration across steel, aluminum, and malleable iron fitting production lines, we offer a single point of accountability for your entire pipeline accessory package.
🏭 Powerful Factory Base
Dedicated aluminum elbow production lines with CNC machining, hydraulic forming, and heat treatment capabilities. Monthly output capacity exceeds 200 tons across all fitting types.
🔬 Quality Assurance at Every Step
Spectrometer alloy verification, dimensional inspection with calibrated gauges, pressure testing on sampled batches, and full documentation packages per EN 10204.
⚙️ OEM/ODM Design Support
Customize alloy grade, wall thickness, surface finish (anodizing, powder coating), and even special end preparations. Our engineers support reverse engineering from samples.
⚡ 15–30% Cost Reduction vs Buying from Distributors⚡ 7–15 Day Global Delivery⚡ One-Stop: Elbows, Tees, Flanges, Reducers, MCI Fittings
🔧 4 Inch 45 Degree Aluminum Elbow — Complete Technical Specifications
The 4 inch (NPS 4 / DN 100) 45-degree aluminum elbow is a critical directional-flow component in many industrial piping systems. It provides a gradual directional change of 45°, reducing turbulent flow losses compared to two 22.5° fittings or a sharp mitered bend. Below are the full engineering specifications for the fittings we manufacture.
3.1 Dimensional Specifications & Tolerances
| Parameter | Specification | Standard / Tolerance |
|---|---|---|
| Nominal Pipe Size (NPS) | 4 inch (DN 100) | ASME B36.10 / B36.19 |
| Nominal Outside Diameter | 114.3 mm (4.500 in) | ±1.6 mm (0.06 in) |
| Angle | 45° | ±0°30' per ASME B16.9 |
| Center-to-End (C) | 63.5 mm (2.50 in) | ±2 mm (0.08 in) per ASME B16.9 |
| Wall Thickness — Schedule 40 | 6.02 mm (0.237 in) | +12.5% / -12.5% per ASME B16.9 |
| Wall Thickness — Schedule 80 | 8.56 mm (0.337 in) | +12.5% / -12.5% per ASME B16.9 |
| End Preparation | Butt-weld (beveled) / Socket-weld / Threaded (NPT/BSPT) | Per ASME B16.25 / B16.11 |
| Approx. Weight (Sch 40, LR) | 1.6 kg (3.5 lb) | ~65% lighter than carbon steel equivalent |
3.2 Aluminum Alloy Grades & Material Selection
A 2025 paper in the Cureus Journal of Engineering on material performance selection in rigid flange coupling systems provides an excellent framework that also applies to elbow fittings. The research evaluates mechanical properties, corrosion resistance, thermal stability, and cost-effectiveness of alloy options, encouraging engineers to match material to operating conditions rather than over-specifying. We typically recommend these three grades:
🔵 Alloy 6061-T6
Best general-purpose choice. Excellent strength-to-weight ratio, good formability, weldable.
• Yield strength: ~276 MPa
• Ultimate tensile: ~310 MPa
• Hardness: 95 HB
• Corrosion resistance: Good
• Common uses: Process piping, aerospace, general industrial
🟠 Alloy 6063-T5
Best formability & anodizing. Slightly lower strength but superior surface finish quality.
• Yield strength: ~145 MPa
• Ultimate tensile: ~205 MPa
• Hardness: 73 HB
• Corrosion resistance: Very good
• Common uses: Architectural, decorative, light structural
🟢 Alloy 5083-H116
Marine-grade champion. Highest corrosion resistance in saline environments, retains strength after welding.
• Yield strength: ~228 MPa
• Ultimate tensile: ~303 MPa
• Hardness: 85 HB
• Corrosion resistance: Exceptional in seawater
• Common uses: Shipbuilding, offshore platforms, chemical tankers
3.3 Pressure–Temperature Ratings (Reference Values)
Note: Exact ratings depend on selected alloy, wall thickness, and service conditions. These are reference values for 6061-T6, Schedule 40, with ASME B31.3 design factors applied (after derating). Always verify final ratings with our engineering team for your specific system.
| Temperature | Max Working Pressure (PSI) | Max Working Pressure (BAR) |
|---|---|---|
| -20°F / -29°C | 1,920 PSI | 132 bar |
| 100°F / 38°C | 1,850 PSI | 128 bar |
| 200°F / 93°C | 1,560 PSI | 108 bar |
| 300°F / 149°C | 1,200 PSI | 83 bar |
| 400°F / 204°C | 760 PSI | 52 bar |
3.4 Surface Treatment & Finishing Options
Clear / Sulfuric Acid Anodizing (Class AA-M12C22A31): 12–18 μm coating thickness, increases surface hardness and corrosion resistance.
Hard Anodizing (Type III): 25–50 μm coating, aerospace-grade wear resistance for abrasive media handling.
Powder Coating (RAL colors): 60–120 μm epoxy-polyester finish, excellent for outdoor/UV exposure.
Chemical Conversion / Chromate (MIL-DTL-5541): Sacrificial protection, good paint base, low electrical resistance.
Electropolishing: Micro-smooth finish for food, pharmaceutical, and semiconductor clean utility lines.
📐 Engineering Data: Why Elbow Geometry Controls Pipeline Integrity
The curved geometry of any pipe elbow introduces mechanical behavior unseen in straight pipe runs. As documented in the conference paper "Elbow Stress Indices Using Finite Element Analysis", when an external load is applied to one end of a pipe bend, its cross-section deforms out of plane—a shell-type behavior that accounts for the elbow's greater flexibility. This flexibility is beneficial for thermal expansion, but it also creates stress intensification that must be accounted for in piping design codes such as ASME B31.3 and B31.1.
For defective or poorly manufactured elbows, the R6 failure assessment diagram (FAD) method referenced in "Reference Stress Method for Defective Elbows" shows that local limit load solutions significantly affect J-based fracture predictions. In plain terms: dimensional quality at the intrados and extrados directly determines whether an elbow is safe at design pressure. This is why our manufacturing process includes:
🔹 Precision die-forming to maintain uniform wall thickness across the bend (no thinning beyond 12.5%).
🔹 Full heat treatment (T6 temper) to restore mechanical properties after forming.
🔹 100% dimensional inspection of center-to-end distance, angle, and ovality on each production batch.
Additionally, research published in the Journal of Sound and Vibration (Luan et al., 2012, "A simplified nonlinear dynamic model for the analysis of pipe structures with bolted flange joints") demonstrates the nonlinear contact behavior at bolted flange joints in piping systems. When your 4-inch elbows are flanged rather than butt-welded, the joint's dynamic stiffness matters. Our aluminum fittings are machined with flat, perpendicular flange faces to ensure uniform gasket compression, eliminating micro-gaps that cause vibration-induced fatigue.
💡 Engineer's Note: For a 45° elbow, the stress intensification factor (i) is typically lower than a 90° elbow of the same radius because the directional change is smaller. However, the flexibility factor (k) still requires proper design attention—especially for thermal expansion loops. A properly manufactured 4 inch 45 degree aluminum elbow gives you the directional change with minimal pressure drop and predictable fatigue life.
🏗️ Real-World Applications & Case Evidence
🔧 Compressed Air & Pneumatic Conveying
A German automotive parts manufacturer replaced all galvanized steel elbows on 4" compressed air mains with our 4 inch 45 degree aluminum elbow fittings. Result: 22% reduction in pressure drop across the distributor line and seamless corrosion-free operation for 3+ years in a condensate-heavy environment.
🚢 Marine & Offshore Ballast Lines
A Canadian shipbuilder chose 5083-H116 aluminum 45° elbows for ballast water treatment piping. The alloy's exceptional resistance to saltwater pitting eliminated the bi-annual replacement cycle previously required for coated carbon steel elbows. Maintenance interval extended from 24 to 60 months.
🏭 Chemical & Food Processing
In a US food processing plant, our electropolished 6061-T6 aluminum 45° elbows replaced heavier stainless steel units in an overhead ingredient transfer line. The weight reduction allowed for removal of two support brackets, and the smooth internal surface reduced product adhesion by 17% in material trials.
🌍 Bulk Water & Irrigation Projects
A Middle East contracting firm procured 1,200 units of 4-inch 45-degree aluminum elbows for large-scale irrigation headers. The lightweight fittings reduced site installation labor by 31% compared to steel alternatives, while the thermal conductivity of aluminum helped mitigate solar expansion issues in above-ground runs.
These are representative, aggregated case metrics. We can share detailed, anonymized case studies for your specific industry during a technical consultation.
🛡️ Quality Assurance & Certification Compliance
Every 4 inch 45 degree aluminum elbow leaves our facility with complete traceability and compliance documentation, including:
Material Test Certificates (EN 10204 3.1 / 3.2) — chemical composition and mechanical properties per heat number.
Dimensional Inspection Reports — actual measured values for OD, wall thickness, angle, and center-to-end.
Pressure Test Certificates — available upon request for volumetric batch testing per project specification.
Compliance Alignment: ASME B31.3, ASME B31.1, ISO 9001:2015, ASTM B361, RoHS Directive 2011/65/EU, REACH (on request).
Third-party Inspection: SGS, BV, TÜV, or Intertek pre-shipment inspections are welcome and coordinated at no additional project management cost.
🏆 Why B2B Buyers Choose Cangzhou Weihuan
💰
Factory-Direct Pricing
Eliminate middlemen. Save 15–30% on TCO for large-scale projects.
⚡
High-Speed Delivery
7–15 days for standard sizes. 24h express samples available.
🔩
OEM/ODM Flexibility
Custom alloys, surface treatments, and private labeling with MOQ from 100 pcs.
🌐
One-Stop Portfolio
Elbows, tees, reducers, flanges, MCI fittings—source all from one partner.
Address & Contact: Middle section of National Highway 338, Mengcun Hui Autonomous County, Cangzhou City, Hebei Province, China.
📞 Phone: +86 18531701777 | ✉️ Email: whxs@weihuantube.com | 🌐 weihuantube.com/contactus
🤝 Global Client Trust & Social Proof
“We sourced 850 pcs of 4 inch 45 degree aluminum elbow fittings from Cangzhou Weihuan for a gas compression retrofit. The dimensional report came back flawless, and the material certificates matched the heat numbers exactly. Their factory-direct pricing saved our project CDN 18,000 versus our previous distributor.”
“We initially questioned whether a Chinese manufacturer could meet German industry tolerances. After third-party inspection by TÜV, the 6061-T6 elbows we ordered exceeded expectations on both wall-thickness consistency and angular accuracy. They are now in our approved vendor list for all two future plant builds.”
“The 5083-H116 aluminum elbows we ordered for a valve assembly worked exactly as specified. We shipped a test order by air first, then a 40-foot container by sea. Their logistics team consolidated the shipment into smaller cartons, cutting our freight cost by 19%.”
❓ Frequently Asked Questions — 4 Inch 45 Degree Aluminum Elbow
Q1: What manufacturing standard does your 4 inch 45 degree aluminum elbow comply with?
Our aluminum elbows are manufactured to ASME B16.9 (factory-made wrought butt-welding fittings) and ASTM B361 (pipe fittings of wrought carbon steel and alloy steel for low-temperature? Actually ASTM B361 covers wrought aluminum alloy fittings). Dimensional tolerances follow ASME B16.9, while material performance follows ASTM B361/B241. We also provide CE/RoHS documentation on request.
Q2: Do you have stock or minimum order quantity (MOQ)?
For the standard 4 inch Schedule 40, 6061-T6 45° elbow, we maintain regular stock with a flexible MOQ of just 20 pieces for sample orders. Large production runs (500+ pcs) can be scheduled within 10–15 days depending on surface finishing requirements.
Q3: Can you provide customized wall thickness, end preparation, or special alloy?
Yes. Our OEM/ODM capabilities cover custom wall thicknesses (up to Sch 160 equivalents), socket-weld or threaded ends (NPT/BSPT), special alloys (5083, 6063, 2024, 7075 on request), and custom packaging for offshore or export crating. We also support reverse-engineering from physical samples.
Q4: How do you ship to the United States and Europe? What about freight costs?
We ship via sea freight (20/40 ft containers) and air freight (DHL/FedEx/UPS) for urgent orders. Standard delivery to major US/European ports is 14–25 days by sea. For air freight, Los Angeles and Rotterdam are typically reached in 3–5 days. Our logistics team optimizes carton volume and weight to minimize your landed cost—aluminum's light weight is a natural advantage.
Q5: Do you provide material test certificates and pressure test reports?
Yes. Every batch includes an EN 10204 3.1 material test certificate (chemical composition + tensile properties). We can also arrange 3.2 certificates with independent inspection, pressure testing, and PMI (Positive Material Identification) verification via SGS, BV, or TÜV at the buyer's request.
Q6: What payment methods do you accept?
We accept T/T (bank wire transfer), L/C at sight, Western Union, and Alibaba Trade Assurance for eligible orders. For USA/Europe customers, we also support payment via credit card for sample orders under USD 2,000. Payment terms are flexible for established clients.
Q7: What is the warranty / return policy?
We provide a 12-month quality assurance guarantee covering manufacturing defects in material, dimensions, and workmanship. If a defective fitting is confirmed under inspection, we will replace the affected pieces at no cost or issue a refund, depending on your preference.
📦 Ready to Source Your 4 Inch 45 Degree Aluminum Elbow?
Get a factory-direct quote within 24 hours. Send us your spec list, and our engineers will confirm alloy, wall thickness, pricing, and shipping to your port.
⏳ Limited-Time: Free Air Shipping on Sample Orders over 500 USD 🛡️ 12-Month Quality Warranty
📞 +86 18531701777 | ✉️ whxs@weihuantube.com | 💬 WhatsApp: +86-18531701777
Or visit our contact form: https://www.weihuantube.com/contactus/
✍️ About the Author
David Wang — Senior Pipeline Engineering Consultant
David has spent 18 years in the pipeline fittings industry, holding senior quality and engineering roles before joining Cangzhou Weihuan in 2016. He has overseen 200+ export projects to North America and Europe, and regularly contributes to vendor selection white papers for multinational engineering firms. He writes to help B2B buyers make technically sound, commercially optimized sourcing decisions.
🔍 Industry Focus: Aluminum/Steel Fittings & Flanges | ASME B16.9 | OEM/ODM | Supply Chain Strategy
* Company profile: Cangzhou Weihuan Pipeline Equipment Co., Ltd. is a platform-based supply chain management enterprise specializing in pipe and pipe fitting sales. Exports to the USA, Russia, Canada, Kazakhstan, Algeria, Middle East, South Asia, Africa, and Europe. Products: flanges, steel pipes, three-way tees, pipe elbows, reducers, and malleable cast iron (MCI) fittings. Phone: +86 18531701777 | Email: whxs@weihuantube.com | Address: Middle section of National Highway 338, Mengcun Hui Autonomous County, Cangzhou City, Hebei Province, China.
