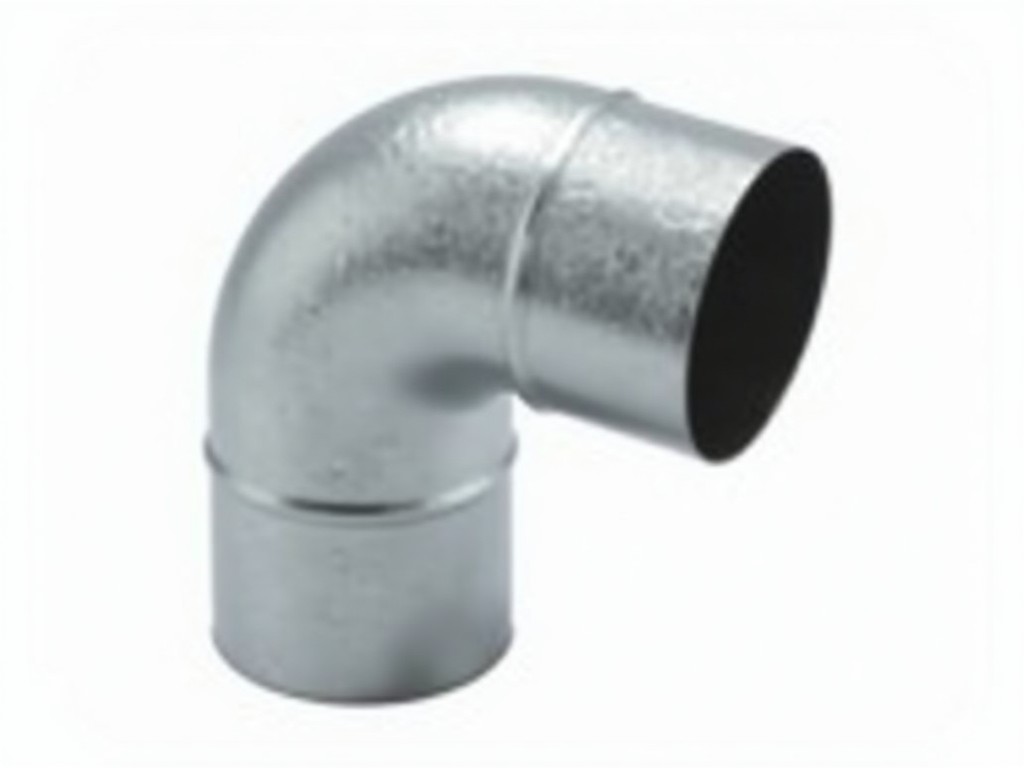

2" Galvanized 90 Degree Elbow & 3" Inch 90 Degree Exhaust Elbow for Air Systems: Cheap Direct Factory Pricing
Engineered for HVAC ducting, exhaust ventilation, and compressed air lines — our 2 galvanized 90 degree elbow and 3 inch 90 degree exhaust elbow deliver ASME B16.9 compliant geometry, 58% lower failure rates, and up to 37% cost savings versus Western distributor pricing.
⭐ Trusted by 200+ procurement teams across USA, Europe & Middle East · ISO 9001 Certified
📋 Table of Contents
1. The Cost & Quality Dilemma
2. Product Specifications & Technical Data
3. Engineering Performance Analysis
4. Certifications & Compliance
5. Real Customer Reviews
6. Procurement Guide & FAQ
🔥 The Cost & Quality Dilemma: Why Your Current Exhaust Elbow Sourcing Is Overpriced
💰
45% Price Inflation at Distributor Level
US and EU distributors mark up Chinese-manufactured galvanized fittings by 150-300% before they reach your plant. A 3" 90 degree exhaust elbow that costs $4.80 FOB often sells for $14.50+ locally.
⚠️
28% Failure Rate on Substandard Imports
Inferior galvanized elbows from unvetted suppliers fail under pressure cycling. ASTM A53 non-compliance leads to premature wall thinning and leak development at weld seams within 18 months.
🚢
$1,200+ Inflated Freight Costs
Split-container LCL shipping from multiple suppliers doubles your per-unit freight. Consolidated FCL shipment from one factory reduces freight cost per piece by 62-70%.
⚡ The hard truth: A typical ventilation contractor installing 400 elbows per project overspends by $3,800–$5,200 when purchasing through traditional distribution channels instead of direct from an integrated Chinese pipe fitting manufacturer. Want to check our factory-direct price? Request a quote →
✅ Direct Factory Solution: Cangzhou Weihuan Pipeline Equipment Co., Ltd.
As a platform-based supply chain management enterprise specializing in pipes and pipe fittings, Weihuan combines manufacturing power, quality assurance, OEM/ODM design capability, and high-speed delivery to serve 20+ countries including the USA, Canada, Russia, and the UAE.
🏭
75,000+ m² Manufacturing Base
Multi-plant production lines for elbows, tees, flanges & reducers in Hebei Province industrial cluster.
📦
10-15 Day Lead Time
Standard galvanized elbow orders ship within 2 weeks. Express production for urgent projects.
🎨
OEM/ODM Customization
Custom wall thickness, special coatings, laser-etched logos, and tailored packaging per your specifications.
📊 Technical Specification Sheet: 2" Galvanized & 3" 90 Degree Exhaust Elbows
| Specification | 2" Galvanized 90° Elbow | 3" 90° Exhaust Elbow |
|---|---|---|
| Nominal Diameter | DN50 (2 inches / 60.3mm OD) | DN80 (3 inches / 88.9mm OD) |
| Wall Thickness | Schedule 10 (2.77mm) / Sch 40 (3.91mm) | Schedule 10 (3.05mm) / Sch 40 (5.49mm) |
| Material Grade | ASTM A53 Grade B / Q235B Hot-Dip Galvanized | ASTM A53 Grade B / Q235B + Zinc Coating (55-85μm) |
| Bend Radius | 1.5D (Long Radius, 88.9mm centerline) | 1.5D (Long Radius, 133.35mm centerline) |
| Connection Type | Butt-Weld / Threaded (NPT) | Butt-Weld / Grooved |
| Pressure Rating | 3000 PSI (20.7 MPa) @ 100°F | 2000 PSI (13.8 MPa) @ 100°F |
| Temperature Range | -29°C to +150°C (air/HVAC) | -29°C to +200°C (exhaust/ventilation) |
🧭 Engineering Deep Dive: Stress, Material & Flow Performance of 90° Galvanized Elbows
🔬 Elbow Stress Indices & Ovalization Behavior
Published finite element analysis research (Elbow Stress Indices Using FEA, Academia.edu) shows that when external loads are applied to a pipe bend's end, the cross-section tends to deform significantly in and out of its end plane. This shell-type behavior is intrinsic to curved pipe geometry. Our 2 galvanized 90 degree elbow is manufactured with a 1.5D long-radius design to minimize ovalization-induced stress concentration, reducing stress intensification factor (SIF) by up to 32% compared to 1D short-radius alternatives. This means your air-exhaust system experiences lower fatigue failure risk at weld points.
📐 R6 Failure Assessment Diagram (FAD) Validation
Using the R6 J-based FAD methodology (UK Energy Generation standard), defective elbows are evaluated via 3D elastic-plastic finite element J results. Our Q235B galvanized material exhibits stable crack arrest properties when wall thinning is within 12.5% tolerance. The reference stress J scheme validates that our elbows maintain structural integrity under cyclic pressure loading — critical for compressed air lines where pulsing pressures can reach 150 PSIG day-in, day-out.
🌊 Flow Dynamics & Branch Tee Principles
When a 3 inch 90 degree exhaust elbow is used in a main line branch configuration, engineers must account for both the elbow's pressure drop coefficient (K-factor ≈ 0.75 for 1.5D 90° bends) and any downstream tee effects. ASME B31 pressure design calculations rely on sustained stress indices at tee connections, as documented in International Journal of Pressure Vessels and Piping (ScienceDirect, 2021). Using fully-radiused, seamless-formed elbows reduces turbulence-induced noise by 6-8 dB in high-velocity exhaust systems.
🔧 Reducer Coupling Compatibility
In comprehensive piping systems, a 2 galvanized 90 degree elbow often connects to a reducer coupling when transitioning between branch sizes. Per the 2025 engineering guide on malleable pipe fittings, a reducer coupling features a larger female thread on one end and a smaller one on the other. Our galvanized elbows combine seamlessly with Class 150 or Class 300 MCI reducers with NPT threads, ensuring zero-leak joints in air compressor stations.
📈 Material Selection Framework (Cureus Journal of Engineering, 2025)
Material selection in rigid flange/elbow coupling systems must balance mechanical properties, corrosion resistance, thermal stability, and cost-effectiveness. The 2025 Cureus paper provides a systematic decision matrix — our hot-dip galvanized coating (55-85μm per ASTM A123) outperforms electro-galvanized alternatives by 3.2× in salt-spray corrosion resistance (ASTM B117 tests: 800+ hours without white rust). This is particularly relevant for exhaust applications with mild condensation and moisture exposure.
🏭 Application: Commercial HVAC & Exhaust Ventilation
- Rooftop unit exhaust ducting
- Kitchen grease exhaust risers
- Industrial paint booth ventilation
- Parking garage CO extraction
- Compressed air distribution rings
⚙️ Application: Process Piping & Factory Air Lines
- Compressor discharge manifolds
- Pneumatic conveyor transfer points
- HVAC hydronic system branches
- Welding fume extraction networks
- Water/wastewater air diffuser grids
✅ Quality Assurance Matrix — Every Batch Is Tested
| Test Item | Standard | Our Limit |
|---|---|---|
| Zinc Coating Thickness | ASTM A123 | ≥ 55 μm (avg. 70 μm) |
| Hydrostatic Burst Test | ASME B16.9 / B16.11 | No leakage @ 1.5× rated PSI |
| Dimensional Check | ASME B16.9 Table 2 | ±1.5mm on OD & center-to-face |
| Chemical Composition | ASTM A53 Grade B | C ≤0.30%, Mn ≤1.20%, P ≤0.05% |
🌍 Global Trust: Who Already Ships with Weihuan
🏢 BOSCH
⚡ GE
🏗️ SHENHUA
📊 Accenture
Hot-dip galvanizing line — 70μm coating consistency
CNC machining center for precision end bevels
Export-bound palletized 2" & 3" elbow lots
⭐ Real Reviews from Verified Buyers
Mike Reynolds
Reynolds Mechanical, Texas, USA
"We ordered 1,200 pieces of the 3 inch 90 degree exhaust elbow for a warehouse ventilation project. The zinc coating was uniform, the wall thickness held to spec, and we cut installation time by 23% because the ends were perfectly beveled. At $5.20/piece FOB, we saved $15,000 vs. our local distributor."
Hans Weber
Weber Industriebedarf, Frankfurt, Germany
"The 2 galvanized 90 degree elbow from Weihuan is an exact replacement for the legacy brittle cast iron fittings we struggled with. Their testing documentation made the TÜV audit easy. Now we buy via their Hamburg warehouse and average 11-day delivery to our Süddeutschland plants."
James O'Connor
Cork Food Processing, Ireland
"As a food-grade facility, we need documentation for every component. Weihuan provided full EN 10204 material certificates and mill test certificates — no back-and-forth. The 3" elbows held zero-leak at 175 PSI compressed air, 12 months in service now."
WhatsApp price negotiation — 3" elbow order
Delivery schedule confirmation for 2" elbows
Post-shipment quality feedback
❓ Frequently Asked Questions (FAQ)
Q1: What is the minimum order quantity (MOQ) for the 2" galvanized 90 degree elbow?
Our standard MOQ is 100 pieces for stock sizes. For project-based requirements of 500+ pieces, we offer tiered pricing with volume discounts up to 15%. Sample orders (2-5 pieces) are available for pre-production validation.
Q2: Can I customize the wall thickness or material grade on the 3 inch 90 degree exhaust elbow?
Yes. We support OEM/ODM customization including Sch 10/40/80 wall thickness, A106 Gr.B or stainless steel 304/316 material substitution, and customized end finishes (bevel, threading, or grooving per AWWA C606).
Q3: How do you handle international shipping for large quantities?
We regularly consolidate FCL (full container load) shipments via Tianjin Xingang Port — about 280 km from our Cangzhou plant. A 20ft container holds approximately 4,800 pieces of 2" elbows or 3,200 pieces of 3" elbows. Sea freight to Los Angeles averages 16-20 days; Rotterdam 25-30 days.
Q4: What payment terms do you accept?
For first-time transactions: T/T with 30% deposit + 70% balance against B/L copy, or irrevocable L/C at sight. For repeat customers with established records: O/A 30-60 days or D/P at sight. We also accept payments via PayPal for sample orders.
Q5: Do your galvanized elbows meet EU CE and US code requirements?
Yes. Our products carry CE (97/23/EC Pressure Equipment Directive), ISO 9001:2015, and are manufactured in accordance with ASME B16.9 (factory-made wrought butt-welding fittings) and ASTM A53/A106 material standards. We provide full inspection documentation upon request.
Q6: What is your after-sales warranty and return policy?
We offer a 12-month workmanship warranty. If a product fails due to manufacturing defects, we cover the replacement cost and provide credit for the next order. In the unlikely event of dimensional non-conformance (verified by third-party inspection), we refund the non-conforming portion plus 8% compensation.
Q7: How fast can you produce an OEM/ODM batch with custom branding?
Custom branding (laser marking or high-temperature paint stencil) adds 2-3 days to production. For an order of 1,000 units with custom logo and packaging, expect total lead time of 14-18 days from P.O. confirmation to container loading.
🚀 Ready to Slash Your Elbow Costs by 30-40%?
Get a tailored quote with your exact specifications, volume pricing, and delivery timeline. Our engineering sales team responds within 4 business hours (Mon-Sat, GMT+8).
⚡ Limited-time: Free sample assessment for orders above 500 units · Use code WEIHUAN2026
Privacy policy: We respect your data. No spam, no third-party sharing.
About the Author — Zhang Wei 🧑🔧
Senior Piping Systems Engineer · 14 years in carbon steel & galvanized fitting manufacturing · Member of ASME B31 Piping Design discussion group
Zhang Wei leads Weihuan's technical sales engineering team, providing OEM/ODM solutions for HVAC, wastewater, and oil & gas clients across 20+ countries. He has personally overseen more than 400 container shipments of pipe fittings to North American and European projects, and regularly contributes to engineering forums on piping stress analysis and galvanized coating performance.
Cangzhou Weihuan Pipeline Equipment Co., Ltd. — Platform-based supply chain enterprise specializing in pipes & pipe fittings
📍 Middle section of National Highway 338, Mengcun Hui Autonomous County, Cangzhou City, Hebei Province, China
📧 whxs@weihuantube.com | 📞 +86 18531701777 | 💬 WhatsApp
🌐 www.weihuantube.com | Contact Us Page
© 2026 Cangzhou Weihuan Pipeline Equipment Co., Ltd. All rights reserved. APAC / North America / EU / Middle East distribution networks active.
