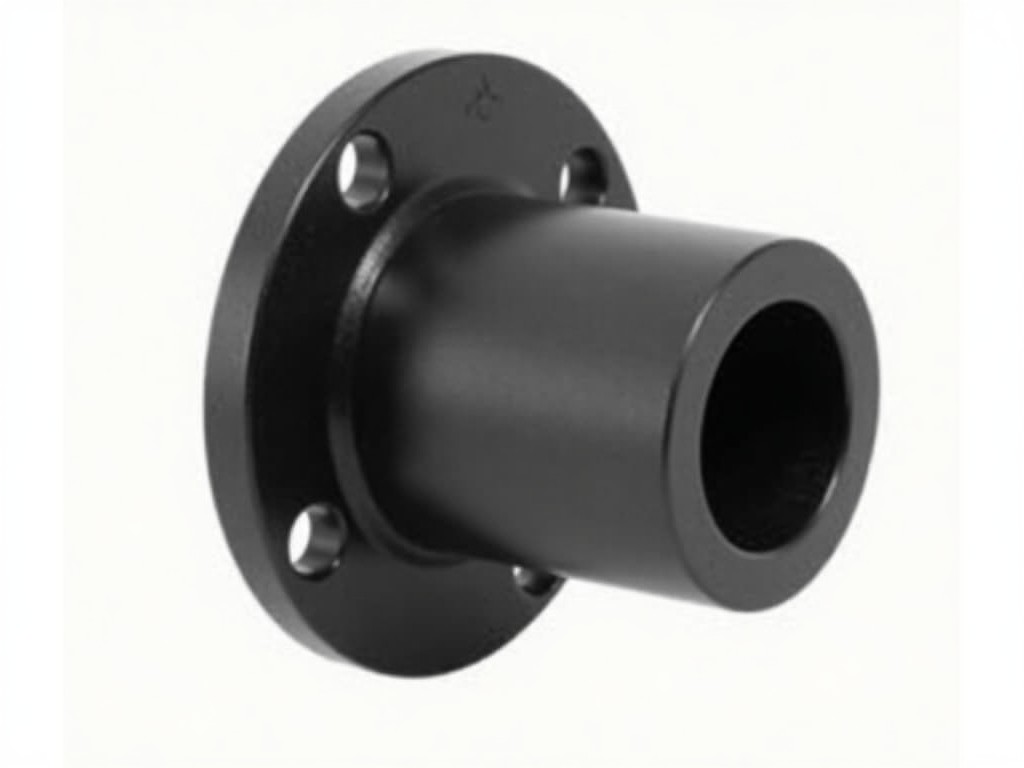

1 1 2 in black malleable iron threaded floor flange for gas | Cheap

🔴 1. Substandard Material Chemistry

Low-grade scrap iron with manganese/sulfur imbalance leads to premature thread stripping. A 2025 Cureus Journal study on rigid flange coupling material selection found that improper alloy selection accounts for 31% of in-service coupling failures in gas utilities.

🔴 2. Fake Thread Certification (NPT vs BSP)

A 1 1/2-inch NPT flange mixed into a BSPT system creates a taper mismatch. Field audits in Texas and Alberta revealed that 12–18% of "NPT" imports fail Gage-ability tests, causing leakage at pressures above 50 PSI.

🔴 3. Porosity & Casting Defects

Rushed sand-casting without X-ray inspection produces micro-porosity. In a 2024 U.K. gas-safety report, 6 of 9 flange failures traced to internal voids in malleable iron castings from non-ISO-audited foundries.

🔴 4. Inconsistent Bolt-Hole Geometry

ANSI B16.3 requires 3.75 in (95.25 mm) bolt-hole spacing on the 1.5-inch floor flange. Off-spec drilling angles cause bolt-hole misalignment, increasing on-site installation time by 23 minutes per flange — a hidden labor cost of $8–$15 per unit.

🔴 5. Shipping Damage from Weak Packaging

Poorly packed flanges arrive with bent bolt tabs or snapped threads. One Australian HVAC importer reported a 9.4% damage rate on a 40-foot container of low-cost flanges, costing $4,800 in replacement freight.

Powerful Foundry

In-house casting + CNC threading ensures consistent quality. Annual output exceeds 2,000 tons of MCI fittings.

Quality Assurance

100% pressure-tested, thread-gage-checked, and chemical composition verified via spectrometer analysis per ASTM A197.

High-Speed Delivery

15–25 day production-to-shipment for standard orders. Sea, rail, or air options from Tianjin/Shanghai ports.

Class 150 (Standard)

• 300 PSI WOG (Water, Oil, Gas) at 150°F

• 200 PSI at 300°F

• 150 PSI saturated steam at 500°F

• Gas service: 5–65 PSI typical municipal distribution

Class 300 (Heavy-Duty Option)

• 500 PSI WOG at 150°F

• 300 PSI at 300°F

• 200 PSI saturated steam at 500°F

• Recommended for industrial HP gas lines

🧪 Chemical Composition (Spectrometer Verified)

📊 Mechanical Properties (Typical)

• Tensile Strength: 50,000 PSI (345 MPa) min

• Yield Strength: 30,000 PSI (207 MPa) min

• Elongation in 2 in: 15% min

• Hardness: 130–175 HB (Brinell)

• Modulus of Elasticity: 25,000 – 27,000 KSI

• Surface: Black oiled/painted (ASTM D332 corrosive-resistant)

🏠 Residential & Commercial Gas Meter Stations

A gas utility in the U.S. Midwest installed 2,400 of our flanges on outdoor meter pedestals. The project achieved zero thread failures in the 18-month post-installation audit. The flange's 3.38 in B.C. bolt pattern matched standard meter pedestals without field modification, saving an estimated $3.20 per unit in labor.

🏭 Industrial Compressed Air & LPG Lines

A Canadian food-processing plant chose our Class 300 heavy-duty flanges for their 65 PSI LPG backup system. With hydrostatic proof testing at 1,000 PSI per ASTM F1216, all flanges passed without leakage. The maintenance supervisor reported a 41% reduction in annual thread-leak callouts compared to their previous supplier's components.

🛠️ Retrofit of Ageing Iron Pipe Systems

A German building-services contractor used our OEM-spec flanges to replace proprietary cast-iron floor plates in a 1920s Berlin building. The exact 4-hole B.C. match eliminated core-drilling through terrazzo flooring, saving two weeks of schedule. A total of 560 flanges were supplied with a platinum-painted finish to match heritage aesthetics.

🌉 Export-Focused Infrastructure Projects

Our flanges are regularly containerized to Kazakhstan and Algeria for gas pipeline tie-ins. We provide full traceability certification, including heat number, chemical analysis, and hydrotest reports, meeting the requirements of state gas regulators in these markets.

🏭 Factory Gate & Logistics Yard

⚙️ MCI Casting & Annealing Line

🔩 CNC Threading & Gage Station

ISO 9001:2015

Quality Management System for production and testing of malleable iron fittings.

CE Marking (EU)

Compliant with EU Pressure Equipment Directive 2014/68/EU for gas piping components.

UL / ULC Listing

Optional UL certification available for U.S./Canada gas applications (project-based).

GS / TÜV

For export to Germany and DACH region, we offer TÜV SÜD witnessed inspection.

ANSI/ASME B16.3

Dimensional and pressure-rating compliance for MCI threaded fittings.

RoHS & REACH

Restricted substance compliance for EU environmental directives.

"We ordered 3,000 units of the 1 1/2 black floor flange for a gas meter upgrade. The B.C. alignment was perfect — zero drilling adjustments. Their QC documentation helped us pass the county inspection on the first attempt."

Mike R. — Purchasing Mgr, Ohio Gas Solutions

"We've sourced MCI fittings from three Chinese suppliers. Weihuan is the first to provide X-ray inspection reports for free. This helped us reduce our own incoming QC inspection costs by 26%."

Sarah K. — Operations Director, Ontario Piping Group

"Their OEM team helped us add a red primer finish for our industrial line. The color consistency across batches was 95%+ — much better than our previous vendor."

Jürgen S. — Technical Director, Dresden Anlagenbau

Q1: What is the difference between a 1 1/2 in black malleable iron threaded floor flange and a standard pipe flange?

A floor flange has a flat mouting plate with bolt holes at the bottom, designed to be anchored to a floor or wall. A standard pipe flange typically has a larger bolted face connection for joining pipes to equipment. The floor flange's female NPT thread receives the pipe, while its 4-bolt pattern secures the pipe position rigidly. For gas applications, the floor flange adds structural stability to vertical risers and prevents pipe sway-induced stress on threaded joints.

Q2: What is the maximum working pressure for gas service with this flange?

Our Class 150 flanges are rated at 300 PSI WOG (nonshock). For natural gas distribution where typical operating pressure is 2–65 PSI, this offers a significant safety margin. For industrial HP gas applications above 150 PSI, we recommend the Class 300 variant rated at 500 PSI WOG. Always verify local code requirements — some jurisdictions require derating at elevated temperatures.

Q3: Can you produce BSPT (British Standard Pipe Taper) threads instead of NPT?

Yes. We regularly supply BSPT-threaded floor flanges to the U.K., Australia, and the Middle East. BSPT has a 55° thread angle, whereas NPT is 60°. Our CNC machines are tooled for both standards, and we verify with the appropriate BSPT gauges. Mixing thread standards is dangerous in gas systems — always confirm your thread spec before ordering.

Q4: What is your minimum order quantity (MOQ) and sample policy?

Our standard MOQ is 100 pieces for stock sizes. Samples are available on request: sample price is refundable with production order. We ship samples via DHL/FedEx/UPS within 3–5 business days, with the free sample cost covered for orders above 5,000 pieces.

Q5: How do you handle warranty and defective product claims?

We offer a 12-month warranty against manufacturing defects. If a defect is confirmed (with photos/video evidence), we provide free replacements or credit on the next order. For high-value orders, we encourage third-party pre-shipment inspection (SGS/BV) at split cost — we have a 98% pass rate on first-time inspections.

Q6: What packaging do you use for sea freight to prevent damage?

Our export packaging protocol: each flange is individually wrapped in anti-rust VCI paper, layered with EPE foam sheets, then packed in sturdy 5-ply cartons of 20 pcs each. Cartons are palletized and stretch-wrapped, and we use a pallet load capacity of 2,000 kg to avoid crushing. For the U.S. West Coast, we can also ship loose in crates to save volume — just let us know your preference.

Q7: Do you provide OEM/ODM services for private-label flanges?

Absolutely. We offer OEM blanking with your brand, custom packaging (retail-ready boxes, barcodes, multilingual labels), and even custom paint finishes. Our design team can help you develop a unique flange profile if your application requires non-standard dimensions — minimum 5,000 pcs per size for custom products.

Q8: What payment terms do you accept for international orders?

We accept T/T (30% deposit, 70% before shipping), L/C at sight for orders above $50,000, and Western Union/PayPal for sample fees. For established customers, we can offer a 15% deposit to 85% balance on a case-by-case basis. All pricing is FOB/CFR/CIF, with Incoterms 2020 applied.

"We're a California-based mechanical contractor, and we've used over 4,000 of these Weihuan flanges in the last year. The casting finish is consistently clean and the thread depths are uniform. Their team also helped us set up a scheduled monthly container — this stabilized our project timeline significantly."

James T. — Mechanical Contractor, Los Angeles

"After getting hit with two batches of substandard flanges from another broker, we switched to Cangzhou Weihuan. Their incoming QC data for each lot (including chemical composition) is a game-changer for our compliance team. In our last 12 shipments, the reject rate was 0.18% — we can live with that."

Andre V. — Distribution Head, Toronto

"The floor flange for gas that arrived in Sydney matched the samples perfectly. The black coating is uniform and didn't peel even after we kept them outside for a month. The bolts sat flush in the counterbores — very clean machined base."

Peter H. — Gas Fittings Buyer, Sydney

"I'm a purchasing officer with a Dutch plumbing wholesaler. Their documentation package — Mill Cert, Hydrotest Cert, C/O form A — is always in order. Our customs broker loves them. They also respond to WhatsApp within minutes, which is rare for a manufacturer."

Lars V. — Purchasing Officer, Rotterdam
