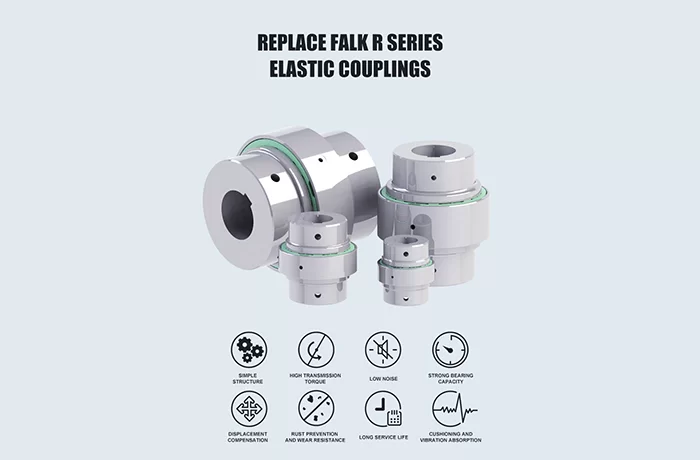

R Series Elastomer Coupling Substitution Rexnord Falk Wrapflex
<p>The FALK-R type coupling is a high-performance elastic coupling.It adopts a modular design of high-strength steel hub and polyurethane elastomer, which transmits torque and compensates for axial, radial and angular deviations through the elastomer.<br/></p>
SupplierJulu County Binhao Transmission Equipment Co., Ltd.www.binhaocoupling.com
Source categories
About this product
Product information from the supplier.
Video
Description
Designed specifically for heavy industrial transmission systems, it features excellent chemical resistance and a working temperature range of -40℃ to 95℃.The claw structure design effectively eliminates stress concentration and extends service life.It is mainly used in heavy industrial fields such as coal mining machinery, metallurgical equipment,and oilfield facilities,and is suitable for transmission systems that require frequent maintenance or are in corrosive environments.Its carbon steel casing can meet the requirements of food-grade or special working conditions in the chemical industry.
Product Features
1.Wide range of applications
Rated torque range:11-15,000N·m,opening capacity:8-190mm,rotational speed:4500-1800RPM
2.Material properties

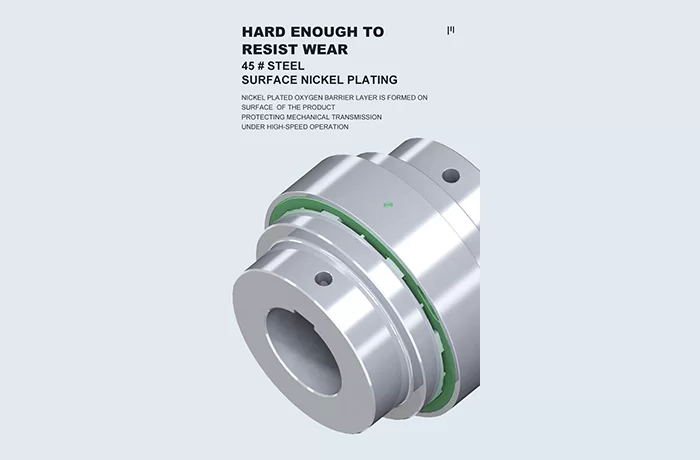

The surface is treated with nickel plating in combination with polyurethane elastomer,which is wear-resistant and chemically resistant.The working temperature range is -40℃ to 95℃
3.Safety protection
Stainless steel fixing screws ensure structural safety after the failure of the elastomer
4.The self-lubricating design reduces maintenance costs

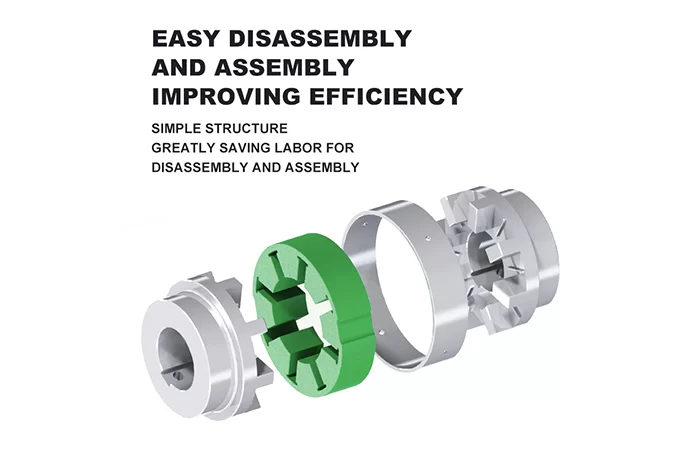

The structure can be quickly replaced without re-centering,reducing downtime
5.Performance compensation capability
High elastic compensation for axial,radial and angular deviations (±0.5mm axial displacement,±0.7mm radial displacement)

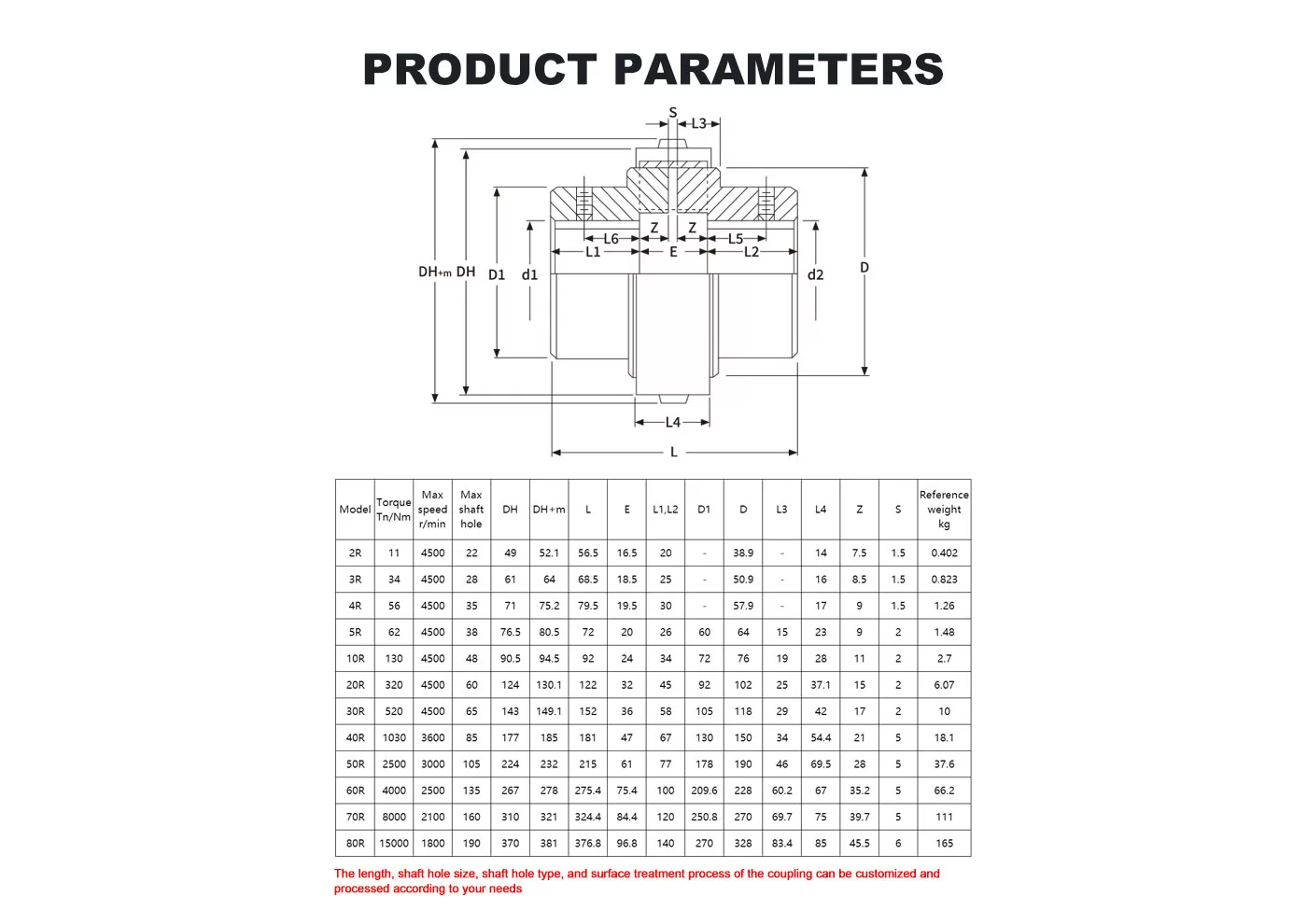

Product Parameters
