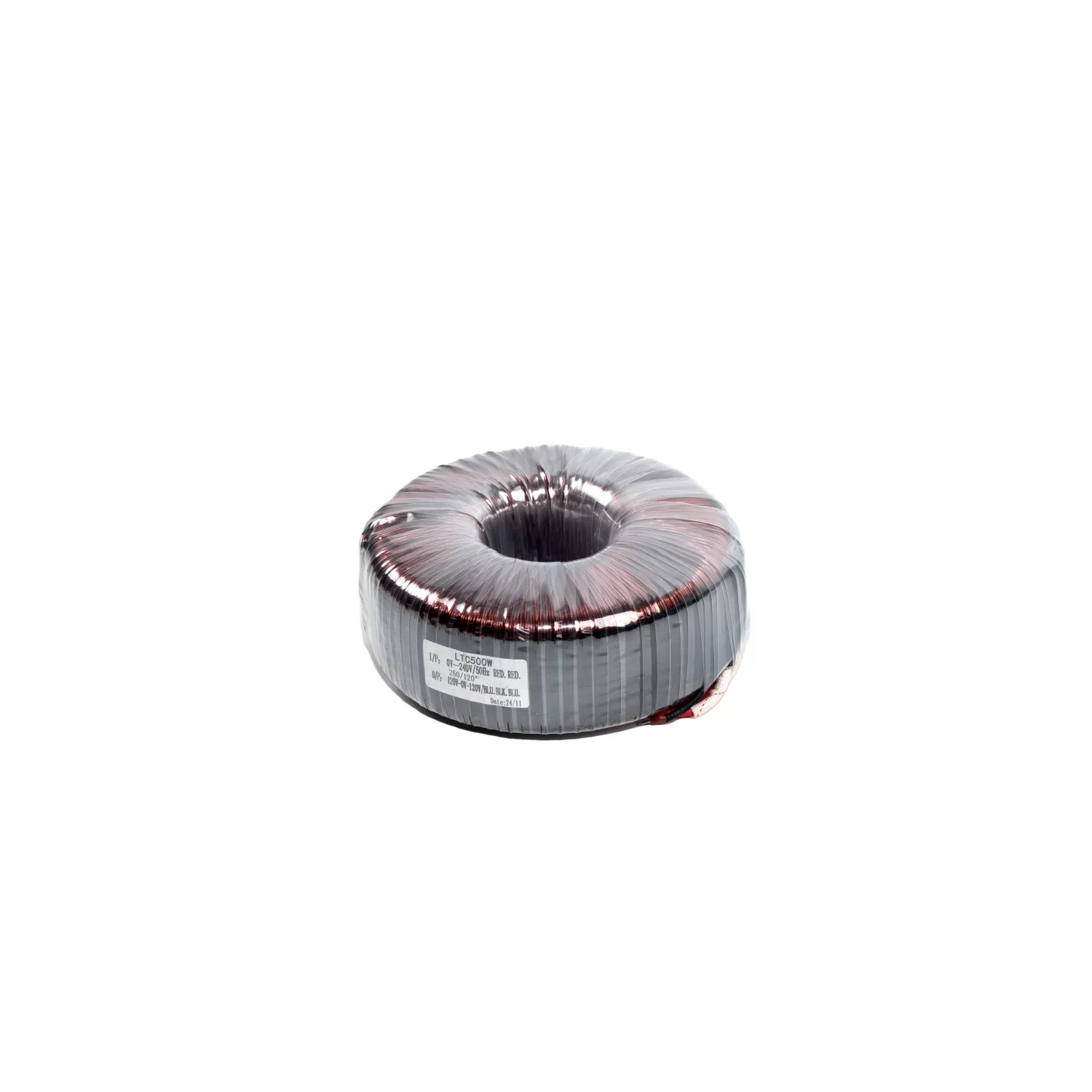

Toroidal Transformer
<p>Toroidal transformer</p><p>The core is formed by winding silicon steel strips (silicon steel sheets) into a closed ring (toroid).</p><p>It is primarily designed to handle low-frequency alternating current, most typically power frequency, i.e., 50Hz or 60Hz. This represents a fundamental difference from high-frequency ferrite core transformers used in switching power supplies (operating from tens of kHz to MHz).</…
SupplierHuizhou Xinchangda Electronic Co.,Ltd.www.xcdmagnetic.com
Source categories
About this product
Product information from the supplier.
Product Parameters
Model | Dimension(MM) |
Net Weight(kg) | |
| Heigth(MM) | Deepth(MM) | ||
| TT-50VA | 45mm | 90mm | 1.05kg |
| TT-60VA | 45mm | 95mm | 1.20kg |
| TT- 80VA | 45mm | 100mm | 1.45kg |
| TT-100VA | 50mm | 100mm | 1.60kg |
| TT- 150VA | 55mm | 110mm | 2.25kg |
| TT-200VA | 60mm | 110mm | 2.60kg |
| TT-250VA | 70mm | 110mm | 2.90kg |
| TT-300VA | 70mm | 120mm | 3.40kg |
| TT-400VA | 75mm | 130mm | 4.00kg |
| TT-500VA | 80mm | 130mm | 4.50kg |
| TT- 600VA | 85mm | 135mm | 5.50kg |
| TT- 800VA | 95mm | 135mm | 6.50kg |
| TT-1000VA | 100mm | 145mm | 8.20kg |
| TT-1500VA | 100mm | 160mm | 10.40kg |
| TT-2000VA | 100mm | 175mm | 13.3kg |
| TT-2500VA | 110mm | 185mm | 15.5kg |
Advantage
High efficiency
Low magnetic leakage and low electromagnetic interference
Low vibration, low noise
Compact size and lightweight
High stability
Excellent heat dissipation
Application
AHigh-end audio equipment: Hi-Fi amplifiers, professional audio systems (with extremely high requirements for noise and interference).Medical equipment
Industrial control systems
High-quality regulated power supplies
Home appliances
Customization Services
OEM Production: Supports bulk manufacturing based on your drawings.
Customization Services
ODM Design: Provides customized solutions based on requirements (e.g., current, frequency, size, Primary winding, Second winding).
